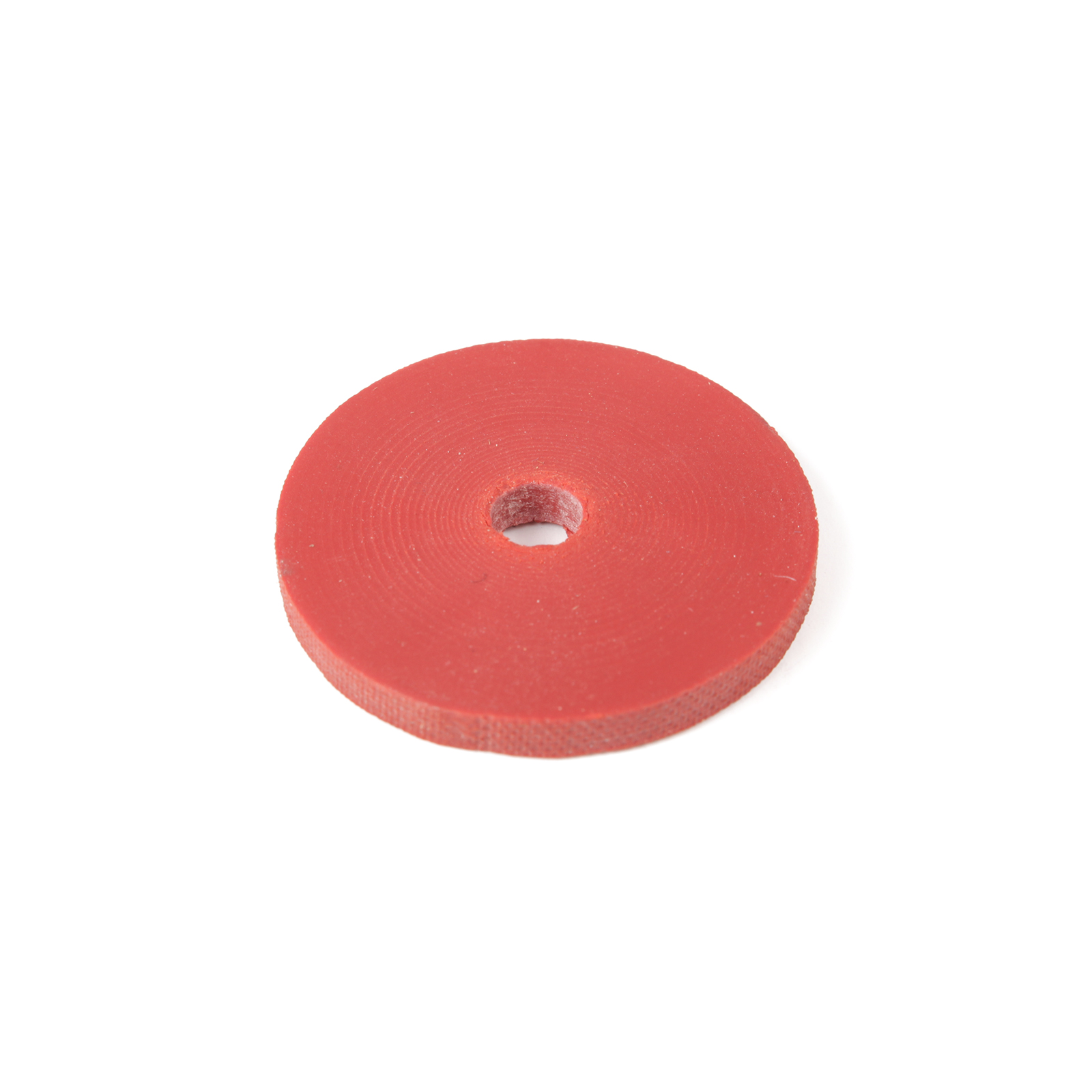

Field Bottle Cap Gasket

Field Bottle Instructions

For a complete M/36 field bottle, you need

• M/36 field bottle
• Field bottle cap
• Field bottle cap gasket
• Field bottle cap bolt set
• 1936 pattern field bottle cover or 1940 pattern field bottle cover
• 1936 pattern field bottle cover strap or 1940 pattern field bottle cover strap

How to correctly use the field bottle cap bolt set

• Put the field bottle cap gasket inside the cap
• Push the bolt through the holes on the gasket and cap from the inside of the cap
• Tighten the bolt to the cap with one nut
• Put the bolt through the rivet hole of the field bottle cover strap
• Screw the second nut on to the bolt
• Screw the end cap to the bolt as far as it goes
• Tighten the second nut back towards the end cap to hold it still
• The field bottle cover strap should be free to rotate around the bolt
